| Display/Screen | Information release system (optional) | |||
| Size | 32" LCD Panel | Split-screen display | Supports pictures and videos with a resolution of 1920x1080 and text information publishing, supports clock, and supports multi-split screen display. | |
| Active display area | 698.4(H) x392.845(V)mm | Content Management | The publishing schedule is managed according to the schedule: the schedule types are divided into: time period, day, week, month and carousel; can be divided into single terminal or group display | |
| Resolution | 1920(V)x1080(H) | Terminal monitoring | Supports network access and terminal monitoring: download programs and visualize the commands sent by the server to the terminal and the execution status. | |
| Brightness | 2000cd/㎡ | Content Publishing | Supports resuming transmission after network disconnection, monitoring of terminal operation status, and statistical reporting; | |
| Contrast ratio | 3000:1 | Free split screen | Free division of screen area: arbitrary combination of video, pictures, subtitles, clock, weather forecast, network data source and other information | |
| Display color | 16.7M | Playback Management | Player management: support system startup, shutdown, and restart; support software remote upgrade | |
| Backlight | led | Machine specification | ||
| Viewing angles | 178°(H) X 178°(V) | Voltage/Operating voltage | 100-240V (50/60Hz) | |
| Response time | 6.5ms | Power consumption | ≤170W | |

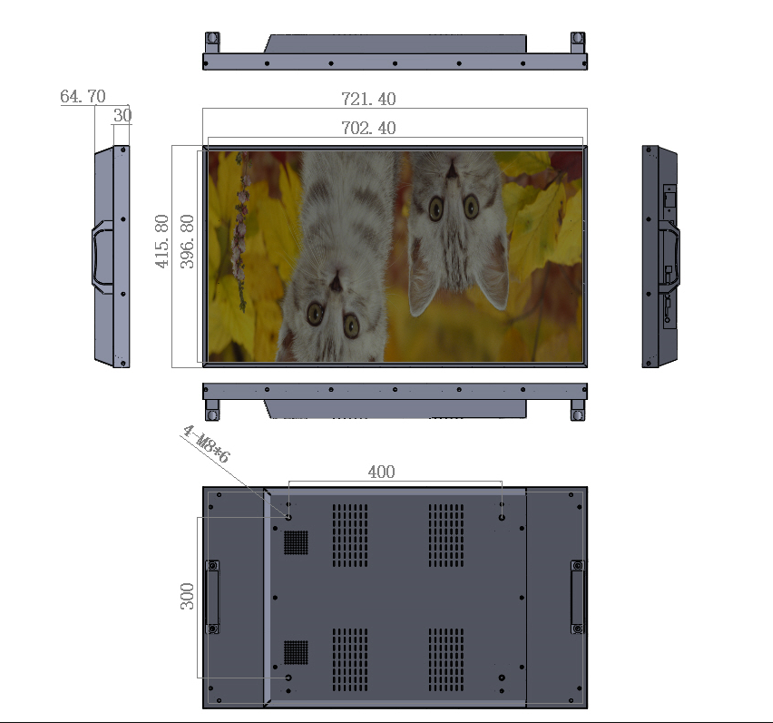

| LCD screen lifespan | 50,000 hours | Product size | 721.4(H)×415.8(V)×65(D)mm | |
| Main board Spec. | Installation | Supports both wall-mounted and hanging installation; | ||
| CPU | Quad core ARM Cortex-A53 | Shell material | Aluminum profile structure design, ultra-thin, ultra-narrow, ultra-light and stylish appearance; Metal materials | |
| Memory/RAM | 1G DDR3 (1G/2G for optional) | Net weight | ≤15KG | |
| Built-in storage/ROM | 8G EMMC (8G/16G/32G/64G EMMC for optional) | Surface treatment | Black metal paint | |
| External storage/Memory extension | TF Card extension with the highest support for 128GB | Environmental | ||
| Operating System | Android 7.0 | Storage Environment | Temperature: -20℃～60℃ Humidity: 5%～95% Atmospheric Pressure: 86kPa～104kPa | |
| Network/Internet | Support 2.4G wireless WIFI connection | Working Environment | Temperature: 0℃～50℃ Humidity: 10%～85% Atmospheric Pressure: 86KPa～104KPa | |
| RTC real time clock | Support timing on / off function | Packing list | ||
| Interfaces | 1xTF card slot, 1x micro-USB(OTG), 1*type-c(support USB 2.0,DC 12v,RJ45), 1*type-c(support USB2.0,RS232,DC 12V) | Advertising Machine/Admachine | 1Pcs | |
| Extended optional features/Optional | 4G module,4G module | |||
| Speaker Speak 8Ω1W*1 | ||||
| Support for special requirements customization | Support for special requirements customization | |||
