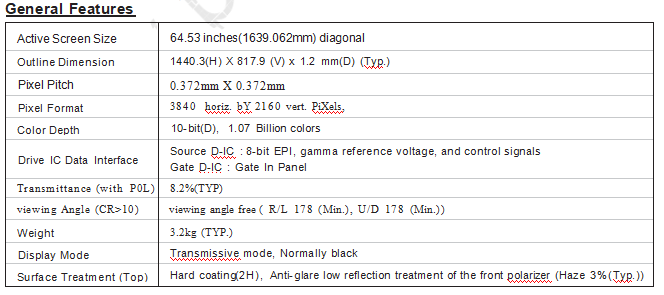

The LC650EGY is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate implanted on Panel (GIP) . The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type display operating in the normally black mode. It has a 64.53 inch diagonally measuredactive display area with QWUXGA resolution (2160 vertical by 3840 horizontal pixel array) . Sub-pixels are constructed with Red, Green, Blue and White. Each pixel is divided into RGB or WRG or BWR or GBW or dots which are arranged in vertical stripes. Gray scale or the luminance of the sub-pixel color isdetermined with a 10-bit gray scale signal for each dot.
*Therefore, it can present a palette of more than 1.07 Billion colors.

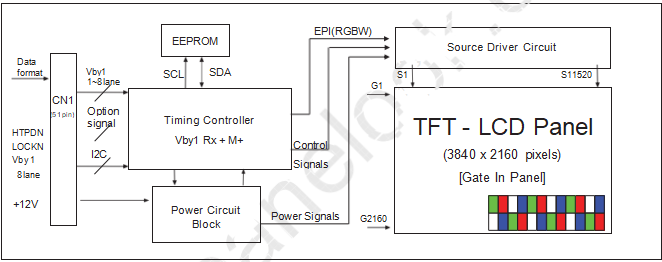

*It has been designed to apply the 10-bit 8 Lane VbyOne interface.
*It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut, high color depth and fast response time are important.

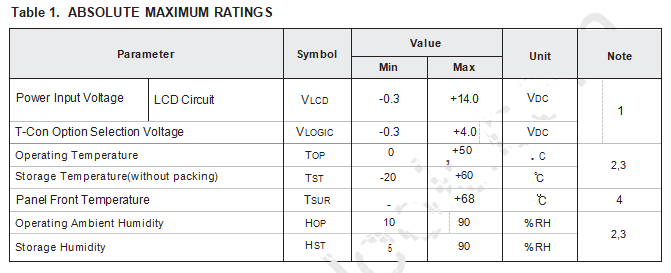

Absolute Maximum Ratings
The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage to the LCD module.
