Application
*Home Alone Multimedia TFT-LCD TV
*Display Terminals for Control System
*High Definition TV(FHD TV)
*AV application Products

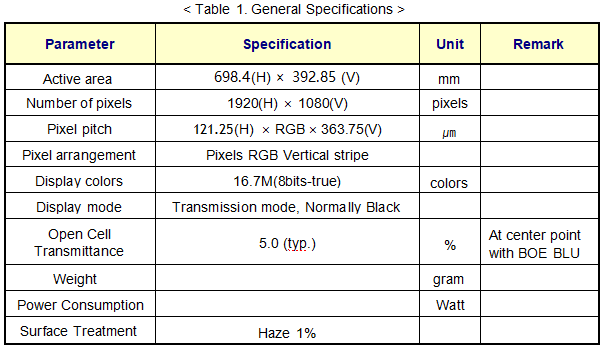

General Specification
Introduction
HY0320GL04 is a color active matrix TFT LCD open cell using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This open cell has a 31.51 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for this open cell is adapted for a low reflection and higher color type.
Features
*LVDS interface with 2 pixel / clock

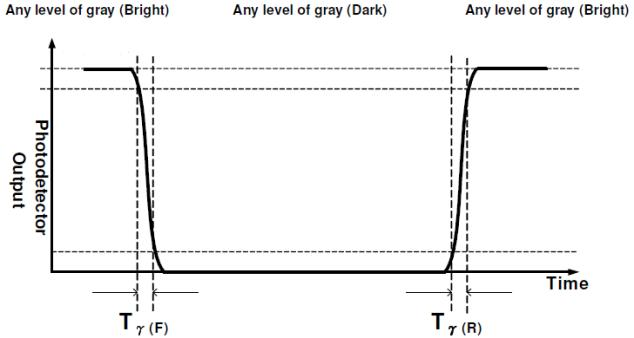

*High-speed response
*Low color shift image quality
*8-bit color depth, display 16.7M colors
*High luminance and contrast ratio, low reflection and wide viewing angle
*DE (Data Enable) only mode
*ADS technology is applied for high display quality
*RoHS compliant
